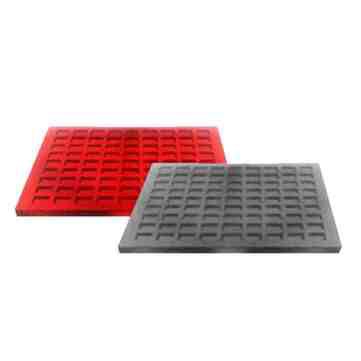

RUBBER CHECKER SHEET: IS 5424: 1969
RUBBER CHECKER SHEET: IS 5424: 1969
- Rubber Checker Sheet used in substation, power plants, for oor covering below control
panels to provide the safety of workman due to possible leakage of current - Tensile strength : 50 Kg/cm2 (min.)
- Elongation at Break : 250% (min.)
- Leakage Current : 10 mA (max.)
- Water Absorption : 4% (max.)
- Compression Set : 10% (max.)
- Ageing Properties at 70±1°C for 168 hours. : a) T.S.:±10% - 25% change (max.) b) E.B.: ±10% - 25% change (max.)
- Working Temperature : 0°C to 55°C
-
Materials
-
Industries
-
Size
Thikness
Sheet Size
Recommended Use/ Working Voltage
Standard Color
6mm
1000mm X 2000mm
0.4 KV
Black
8mm
1000mm X 2000mm
1.0 KV
Black
10mm
1000mm X 2000mm
7.5 KV
Black
12mm
1000mm X 2000mm
11.0 KV
Black
16mm
1000mm X 2000mm
17.0 KV
Black
19mm
1000mm X 2000mm
22.0 KV
Black
25mm
1000mm X 2000mm
33.0 KV
Black
